High-Strength Hydraulic Cutter Suction Dredger Equipped With Cummins Engine
1. Leader Dredger Cutter Suction Dredger Feature
1. Single operation.
2. New high-efficiency cutter drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Fully assembled and fully tested before delivery.
6. Work with experienced engineers for very simple and fast assembly.
7. Standard design, short delivery time.
8. Standard spare parts available from stock.
9. Designed as a standard to qualify for a coastal waters certificate.
2. Why Choose Leader Hydraulic Cutter Suction Dredger?
Leader Dredger dual pump cutter suction dredger has the characteristics of strong geographic environment adaptability, simple structure, easy maintenance, reliable performance, long service life, low cost, and large workload (800 to 12000 cubic meters per day). It is a marine dredging and Ideal for channel dredging. It can also be used for salt mining in salt lakes, offshore and river dredging, hard riverbed mining, waterway improvement and development. The dredged sand after sieving and separation is pure and free of impurities, making it an ideal choice for the construction industry.
1. Equipped with Australian Warman technology dredging pump
2. The modular design can achieve rapid assembly with HID senior engineers
3. Rexroth, Vickers full hydraulic control
4. The factory provides dredger components to shorten delivery time
5. Control the working process of dredging and pumping, and transport the materials of dredging materials. Lower cost;
3. Hydraulic Cutter Suction Dredger Desgin
• Hydraulic pumps drive cutter, winches spud rams
• Main engine drives pump through gearbox
• pump inside engineroom
• Design of high production long distance and reliability, easy control, simple maintenance
• Australian technology pump
• Famous European-brand electric system and hydraulic system
• Engine room big and cool, and easy to maintain
• Dredge can be equipped with several options such as
Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System
4. Leader Dredger LD3700 Technical Specifications
A . Dredging Features
| Standard dredging depth(m) Maximum mixture | 12m |
| capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 500/450mm |
B . Principal characteristics
| Overall length(m) | 35m |
| Breadth(m) | 7m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 1800m |
| Total dry weight approx(MT) | 130MT |
| Ladder length | 19m |
C . Dredge pump: Australia technology Pump
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. | Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
D . Engine
| Main diesel engine(Cummins) | CAT C32 746kw |
| Auxilary engine | CAT C9.3 218KW |
| Total fuel consumption | ≤154kg/hr |
| Extra emergency generator set | 24kw(32Hp) |
5 . About 18 Inch Hydraulic Cutter Suction Dredger
1. Replaceable teeth
The cutter teeth are fixed on the cutter head by bolt connection. Therefore, depending on the material to be dredged, they can be easily interchanged between three different types, or replaced when worn.
2. Tilting pile
The dredger has pegs that can be manually tilted and fixed to the deck. This design ensures the easy storage and movement of the dredger, and facilitates road transportation on water and on flatbed trucks.
3. Hydraulic propulsion
The hydraulic thruster of the cutter suction LD3700 is installed on the back of the pontoon. This makes it easy to maneuver around sparse areas without supporting boats and other expenses.
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
7.Leader Dredger Cutter Suction Dredger Customer

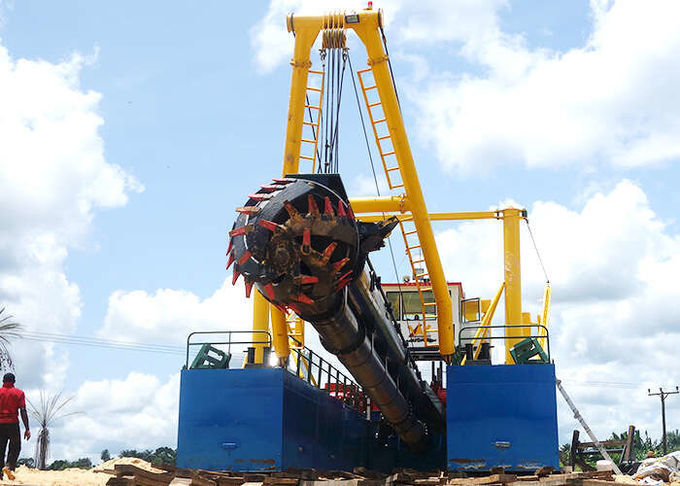

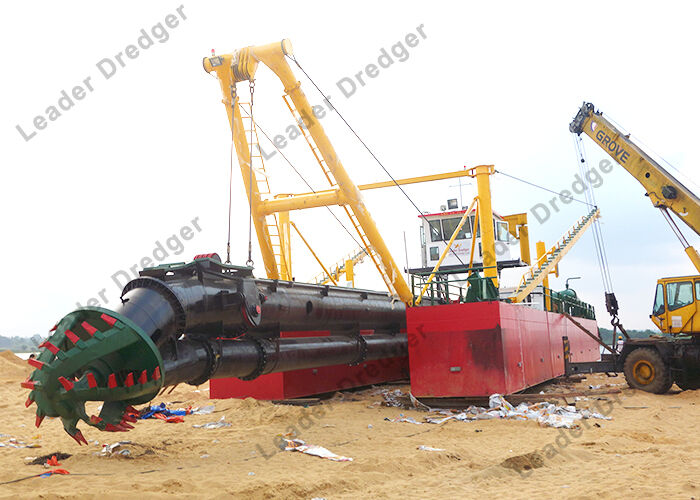

8. Cutter Suction Dredger Picture
